Orbits for conceptual lunar mission (2012):
Orbits 1 Orbits 2

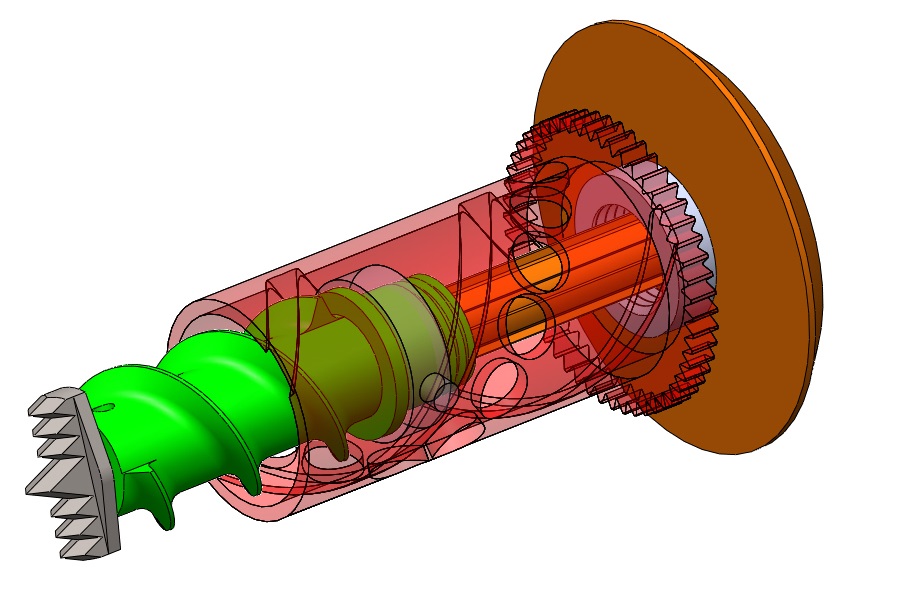

Design for conceptual lunar regolith drill (2011):
Drill Concept

Auger concept

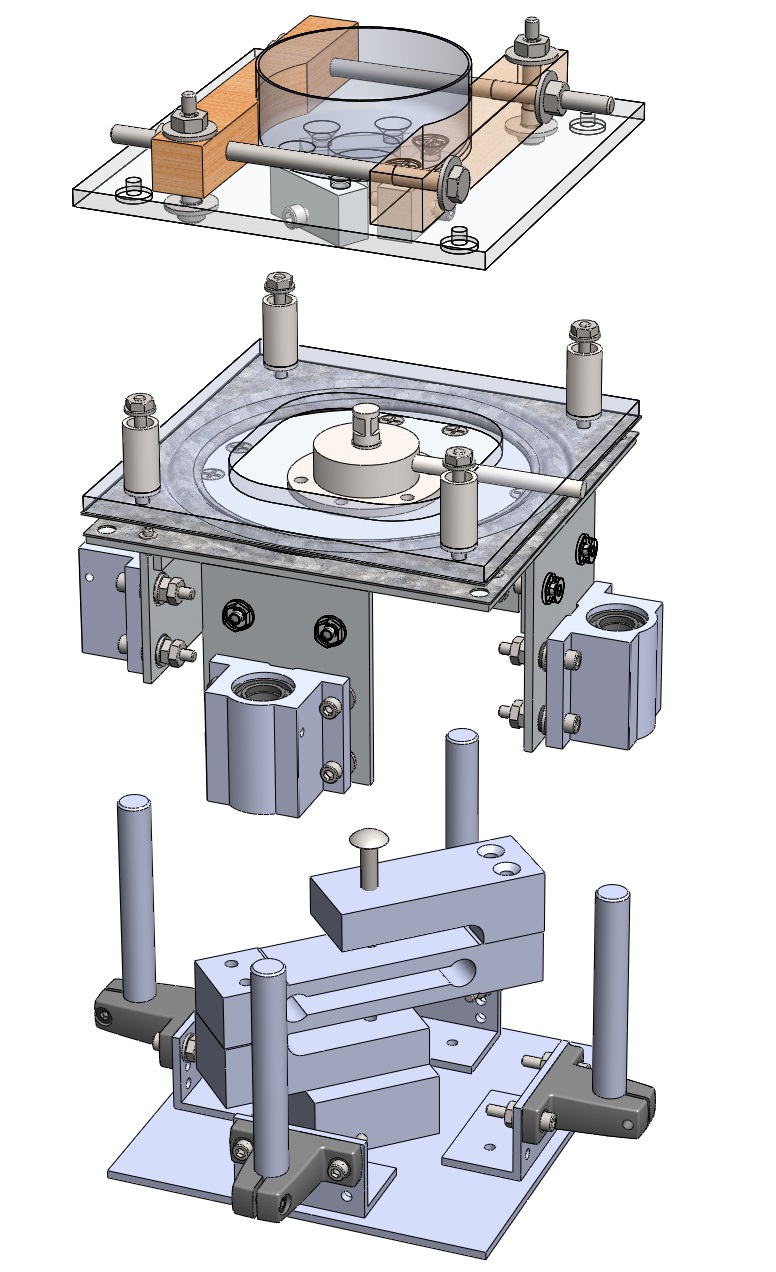

Solid model for drill test rig:
Drill test rig model

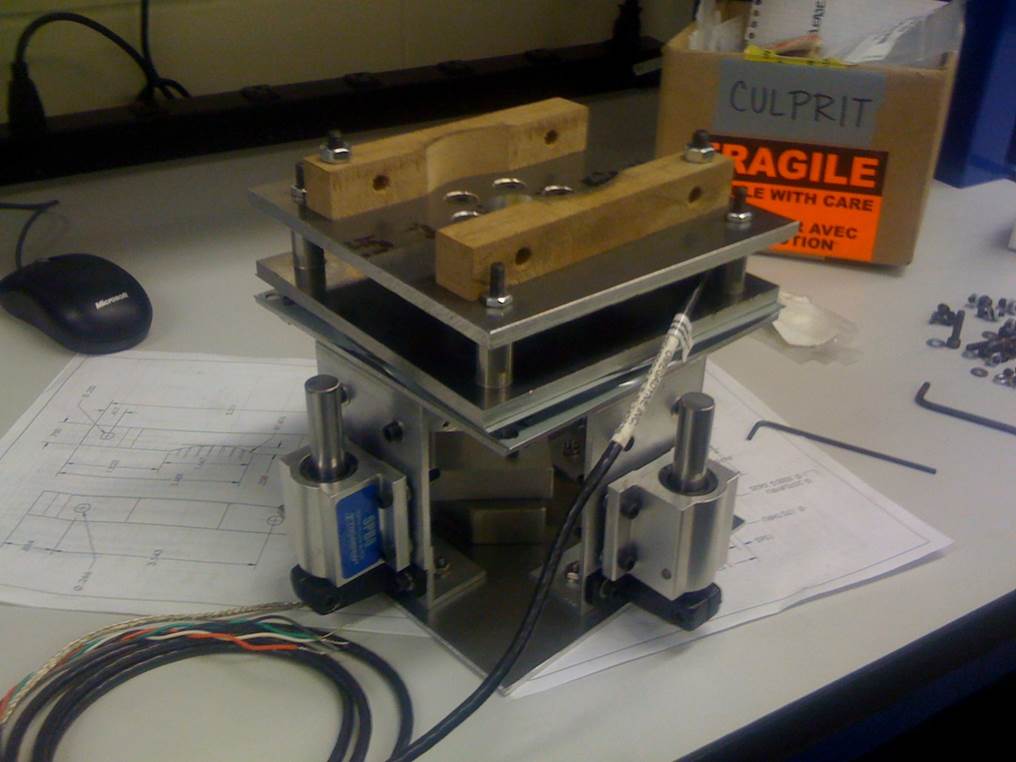

Partially assembled rig:
Drill test rig

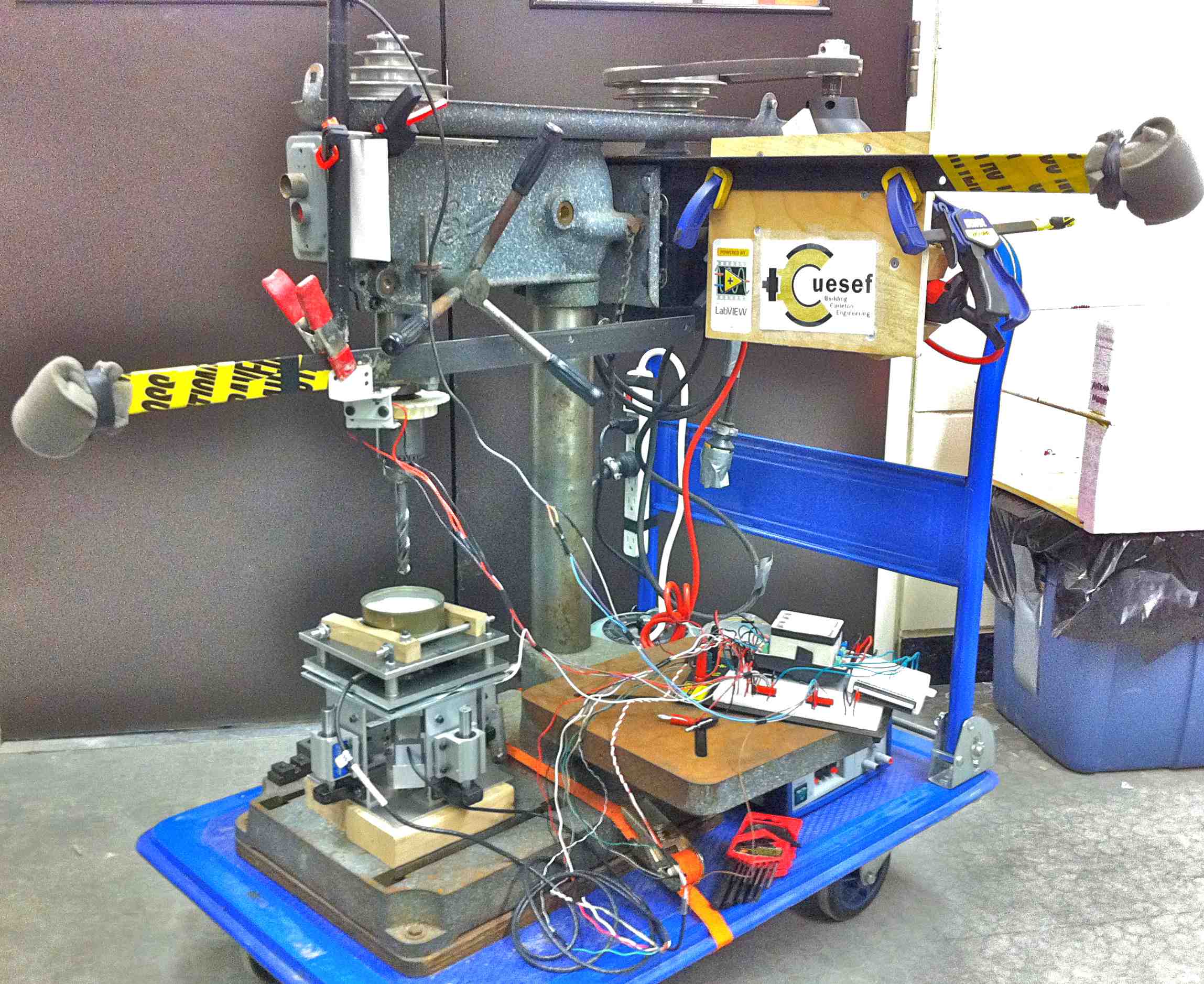

Completely assembled rig:
Drill test apparatus

Solid model of MB02 (2008):

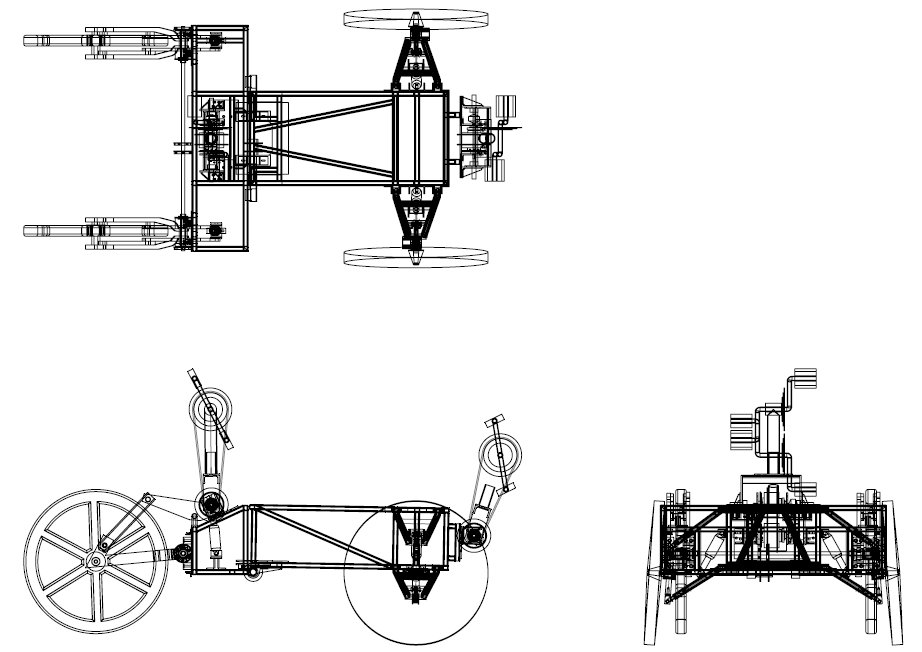

Wireframe orthographic view of MB02

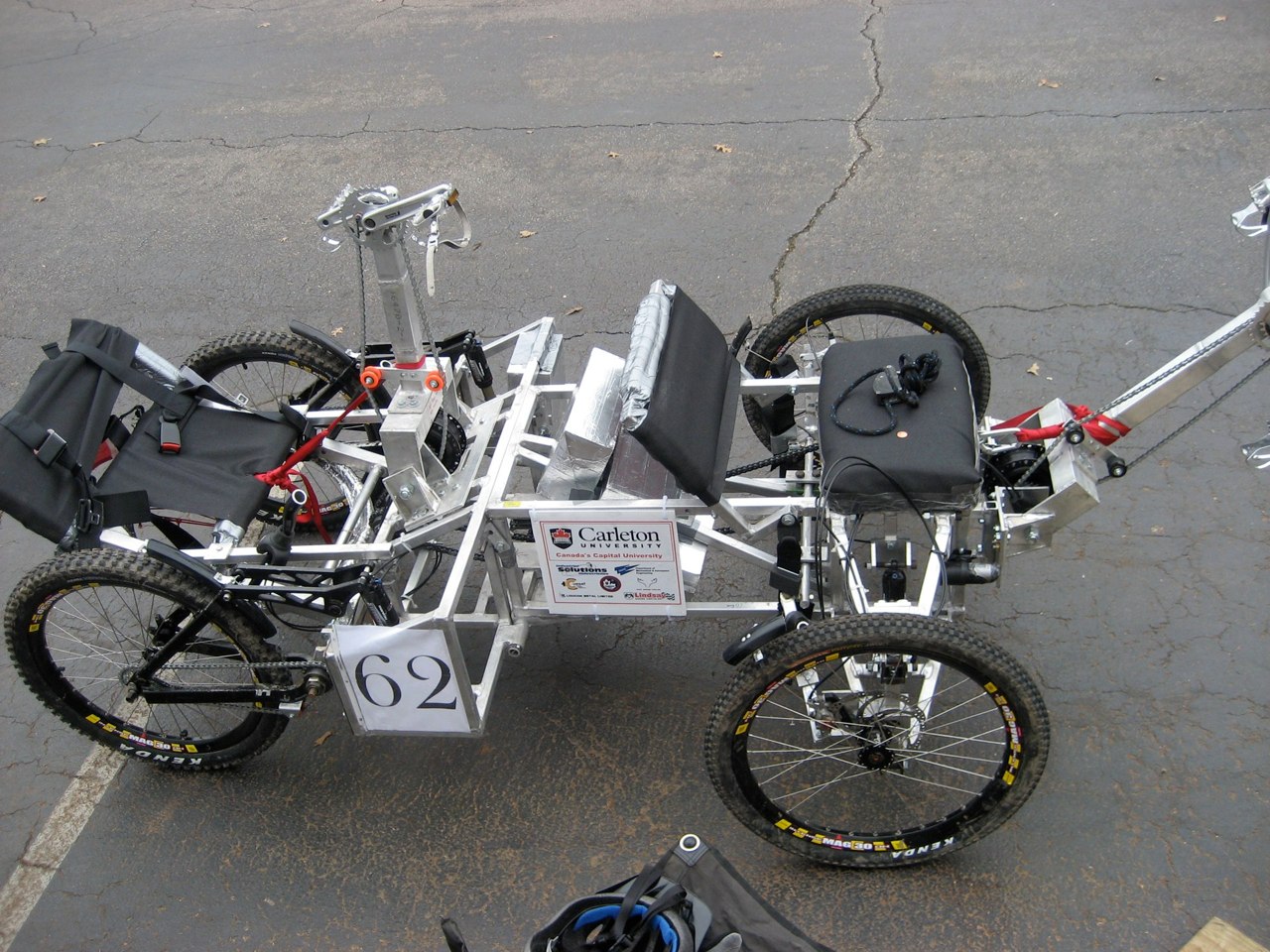

Photographs of assembled MB02

Early solid model of MB01 frame and suspension (2007):
MB01 Model

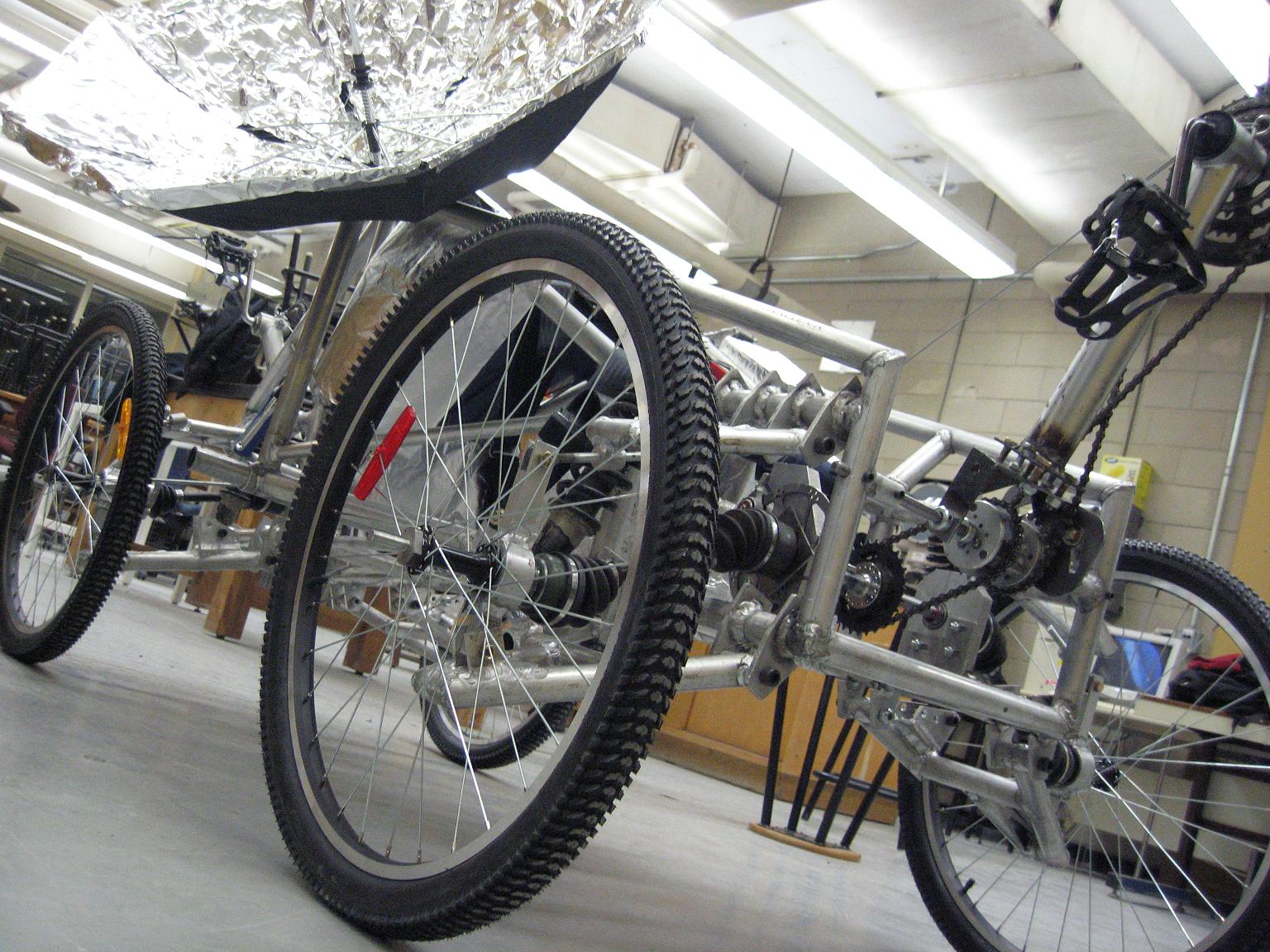

Close-up photo of MB01:
MB01 Photo
